Feature:
1. Advanced separate techniques with automotive, easy to operate and smaller area facilities..
2. No any restrict content for inlet oil water, and oil content of inlet could be fluctuated between 0 and 250,000 mg per liter.
3. Stabile performance in separate, the oil content of outlet will be decreased to 10mg per liter.
4. Suspend and solid materials in inlet oil water will not inference the effect of separate, and it will be separated too. The coarse grain polymeric will not be blocked and need back washing.
5. Supply with automotive liquid position, oil discharge, protect of over pressure and online detecting for oil content in discharge water。

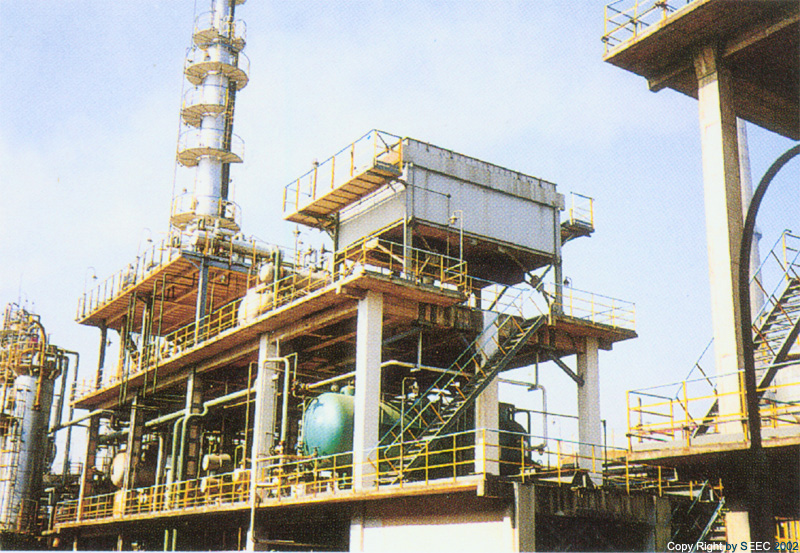

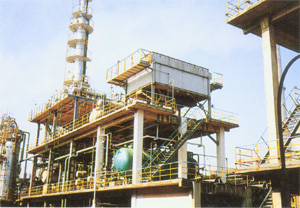

Photo by Qindao Beihai shiphuilding factory 1997

DYF serials separator have various type by its treat capacity from 1 M3 to 300 M3 per hour, and it could be used in:
1. Drilling rig and crude oil dewatering system.
2. Oil refining system and catalytic cracking system.
3. Petrochemical industrial.
4. Port, shipping, and ballast water of vessels.
5. Naval reconnaissance and marine drilling platform.
6. Power plant, oil tank and tank cleaning.
7. Industrial and mining enterprises mainland.
8. Combine working with breaking milk, flotation, and bio-tech system.
